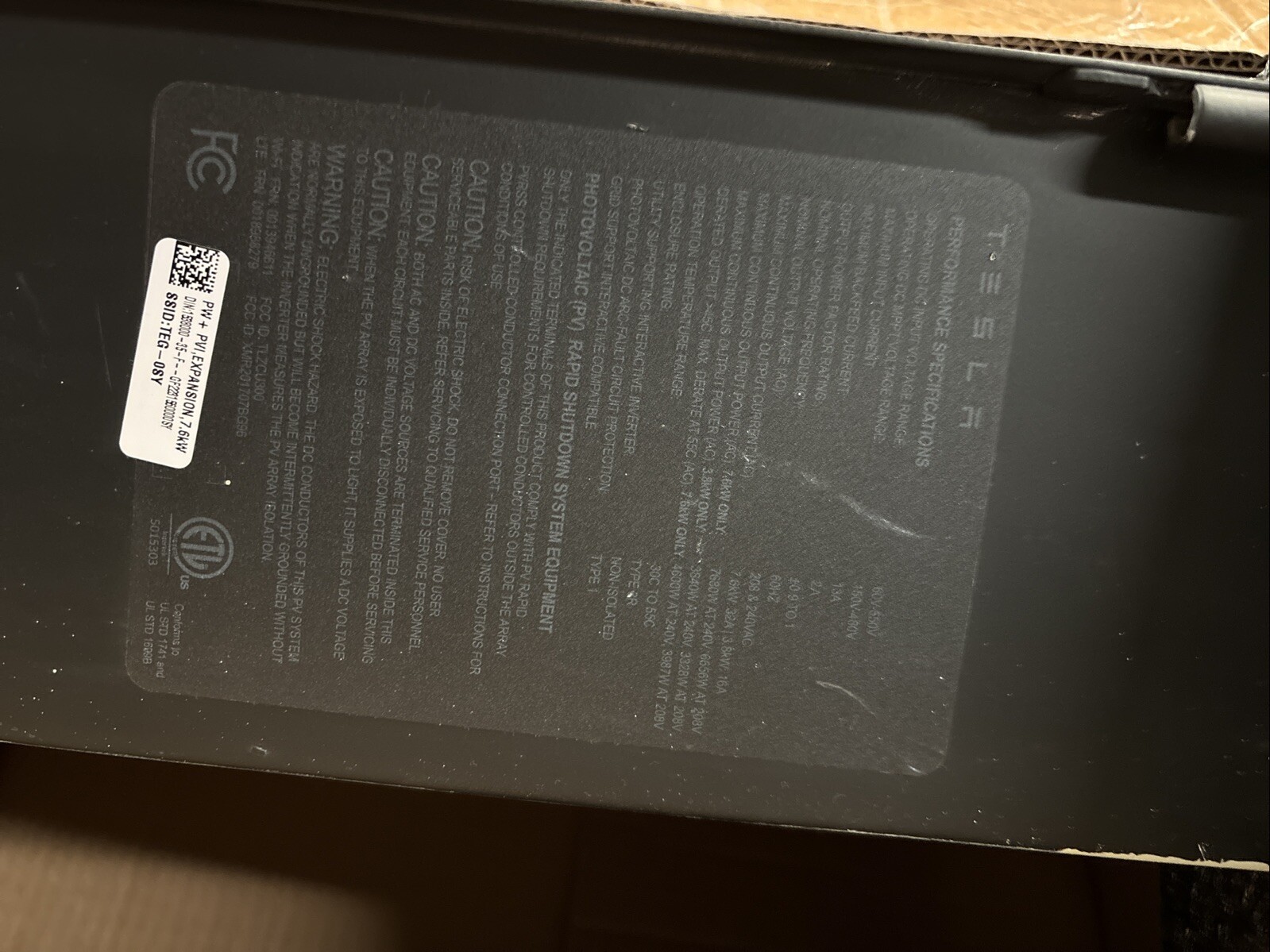

Tesla - 7.6 kW solar assembly for Powerwall+ 1538000-35-F

SOLAR INVERTER  7.6 kW

Tesla Solar Inverter completes the Tesla home solar system, converting DC power from solar to AC power for home consumption. Tesla's renowned expertise in power electronics has been combined with robust safety features and a simple installation process to produce an outstanding solar inverter that is compatible with both Solar Roof and traditional solar panels. Once installed, homeowners use the Tesla mobile app to manage their solar system and monitor energy consumption, resulting in a truly unique ecosystem experience.

KEY FEATURES

• Built on Powerwall 2 technology for exceptional efficiency and reliability

• Wi-Fi, Ethernet, and cellular connectivity with easy over-the-air updates

• Designed to integrate with Tesla Powerwall and Tesla App • 3.8 kW and 7.6 kW models available

What you see in the pictures is what you will be receiving

SOLAR INVERTER

Tesla Solar Inverter provides DC to AC conversion and integrates with the Tesla ecosystem, including Solar Panels, Solar Roof, Powerwall, and vehicle charging, to provide a seamless sustainable energy experience.

KEY FEATURES

• Integrated rapid shutdown, arc • 2x the standard number of MPPTs for fault, and ground fault protection high production on complex roofs

• No neutral wire simplifies installation

ELECTRICAL SPECIFICATIONS

MECHANICAL SPECIFICATIONS

OUTPUT (AC)

3.8 kW

7.6 kW

Nominal Power

Maximum Apparent Power

Maximum Continuous Current

Breaker (Overcurrent Protection)

Nominal Power Factor

THD (at Nominal Power)

MPPT

Input Connectors per MPPT

Maximum Input Voltage

DC Input Voltage Range

DC MPPT Voltage Range1

Maximum Current per MPPT (Imp)

Maximum Short Circuit Current per MPPT (Isc)

3,800 W

3,328 VA at 208 V 3,840 VA at 240 V

16 A

20 A

7,600 W

6,656 VA at 208 V 7,680 VA at 240 V

32 A

40 A

Dimensions

Weight

Mounting options

660 mm x 411 mm x 158 mm (26 in x 16 in x 6 in)

52 lb4

4 Door and bracket can be removed for a mounting weight of 37 lb.

1 - 0.85 (leading / lagging)

<5% 24

INPUT (DC)

1-2

1-2-1-2

600 VDC

60 - 550 VDC

60 - 480 VDC

11 A

15 A

158 mm

ENVIRONMENTAL SPECIFICATIONS

PERFORMANCE SPECIFICATIONS

Peak Efficiency2

CEC Efficiency2

Allowable DC/AC Ratio

Customer Interface

Internet Connectivity

AC Remote Metering Support

Protections

Supported Grid Types

Required Number of Tesla Solar
Shutdown Devices per Solar Module Requirements per Module on page 3

Warranty 12.5 years

1 Maximum current.
2 Expected efficiency pending final CEC listing.
3 Cellular connectivity subject to network operator service coverage and signal strength.

Operating Temperature5

Operating Humidity (RH)

Storage Temperature

Maximum Elevation

Environment

Enclosure Rating

Ingress Rating

Pollution Rating

Operating Noise @ 1 m

–30°C to 45°C (–22°F to 113°F)

Up to 100%, condensing

–30°C to 70°C (–22°F to 158°F)

3000 m (9843 ft)

Indoor and outdoor rated

Type 3R

IP55 (Wiring compartment)

PD2 for power electronics and terminal wiring compartment, PD3 for all other components

< 40 db(A) nominal, < 50 db(A) maximum

97.5%

97.5%

1.4

98.0%

Tesla Mobile App

Wi-Fi (2.4 GHz, 802.11 b/g/n), Ethernet, Cellular (LTE/4G)3

Wi-Fi (2.4 GHz, 802.11 b/g/n), RS-485

Integrated arc fault circuit interrupter (AFCI), Rapid Shutdown

60 Hz, 240 V Split Phase 60 Hz, 208 V Wye

5 For the 7.6 kW Solar Inverter, performance may be de-rated to 6.2 kW at 240 V or 5.37 kW at 208 V when operating at temperatures greater than 45°C.

COMPLIANCE INFORMATION

See Solar Shutdown Device

660 mm

411 mm

Grid Certifications

Safety Certifications

Emissions

UL 1741, UL 1741 SA, IEEE 1547, IEEE 1547.1

UL 1699B, UL 1741, UL 1998 (US)

EN 61000-6-3 (Residential), FCC 47CFR15.109 (a)
