200W Watt 12V Solar Panel Mono High Efficiency PV for Camping Sunshed RV

200W / 120W Solar Panel

Features:

1. The product adopts all-black positive A single-crystal panel, which can enhance the product's light absorption and power generation efficiency, improve the conversion rate, and the power generation efficiency in rainy and snowy weather is better than that of ordinary panels.

2. The product adopts anti-solar attenuation cell and packaging design, which can effectively prevent the efficiency from decaying.

3. The exterior of the product is made of high-transmittance tempered glass, which is strike-resistant and has a good light transmission rate of 99%, which can better increase the production capacity.

4. The back plate of the product adopts anti-aging high-quality back plate with good waterproof sealing.

5. The back of the product has a junction box with IP65 protection level installed, more durable and long-lasting

6. The product adopts the full amount of full-watt power, the output is very stable, high efficiency and high capacity.


Specification:
Product type: full black positive A monocrystalline panel silicon solar panels
Maximum output power: 200W, 120W
Material: tempered glass / EVA / battery / EVA backplane
Solar silicon crystal: monocrystalline silicon
Crystalline Silicon Characteristics: High light conversion efficiency
Cell size and quantity: 210*70mm / 33
Maximum working voltage: 18.2V (18v solar panel to 12v equipment charging)
Maximum working current: 5.99A
Open circuit voltage: 21.4V
Short circuit current:6.20A
Tolerance:5%
Maximum system open circuit voltage: 1000V
Product size: 200W - 32.6x26.4x1.2inch  /  120W - 26.4x19.7x1.2inch
Operating temperature range:-40~85℃
Relative Humidity:<90%
Bezel thickness: 0.8MM
Frame: anodized aluminum alloy
Scope of application: Outdoor, rooftop, mountain, water and other application conditions.

Package Include:
1 x 200W /120W solar panel


Pay Attention:

1. We highly suggest you to pair this panel with a TRUE MPPT controller to utilize the maximum power out of the panel.

2. Tilt mounts with the right angle towards the sun will help the power output

3. Higher Latitude area has lower sun radiation in general, which means the output from same solar panel will be less

============================================

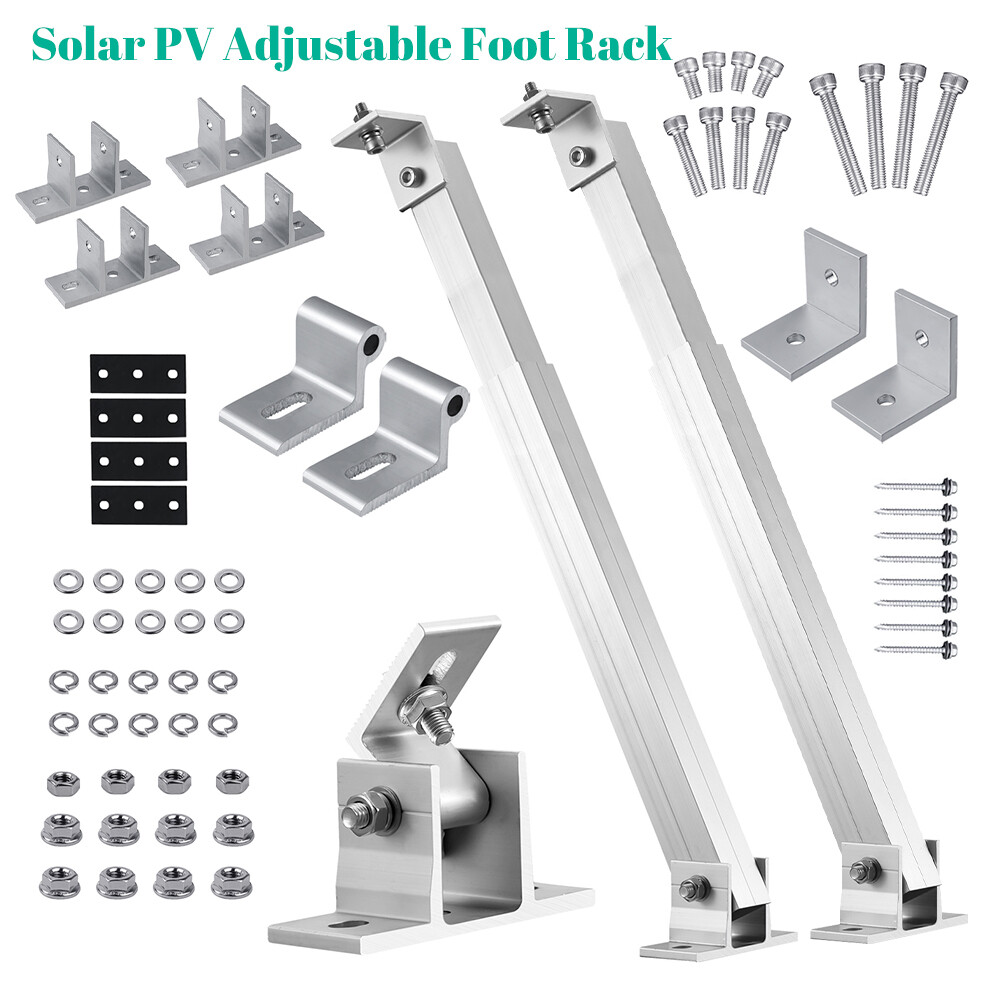

Only 2pcs (1pair)  Solar Panel Brackets (Not Included solar panel)

Features:

1.   A   djustable angle:  when the seasons change, adjust the angle appropriately to ensure that the module has good sunshine continuously and improve the power generation efficiency of the module.

2.   Corrosion resistance and durability:   made of aluminum alloy AL6005-T5, light in weight, strong in bearing capacity and corrosion resistance, suitable for all environments.

3.   Strong compatibility:  PV modules of different specifications can be applicable, and are different arrangement modes of PV modules, which can realize random interchange.

4.   Reliable quality:   the structure takes full account of factors such as bearing, wind resistance and earthquake-resistance, and has undergone strict calculation and testing to ensure reliable installation.

5.   Simple installation:  The adjustable support system, solution to the installation of inclined roof, with greater flexibility, so that the solar panel installation angle within the range of 15-30 °.


Specification:
Quantity: 2 packs
Wind speed: <55m/s
Snow load bearing pressure: <1.4KN/m2
Material: aluminum alloy AL6005-T5
Installation location: color steel tile roof, cement roofing
Product use: Applicable to various general framed solar panels in the existing market, fixed at a particular angle on the color steel tile roof, with the role of supporting the entire array of photovoltaic modules.


P roduct list:
Front foot base*2pcs
Rear foot adjusting bracket *2pcs
Bolt fittings * 1 package
