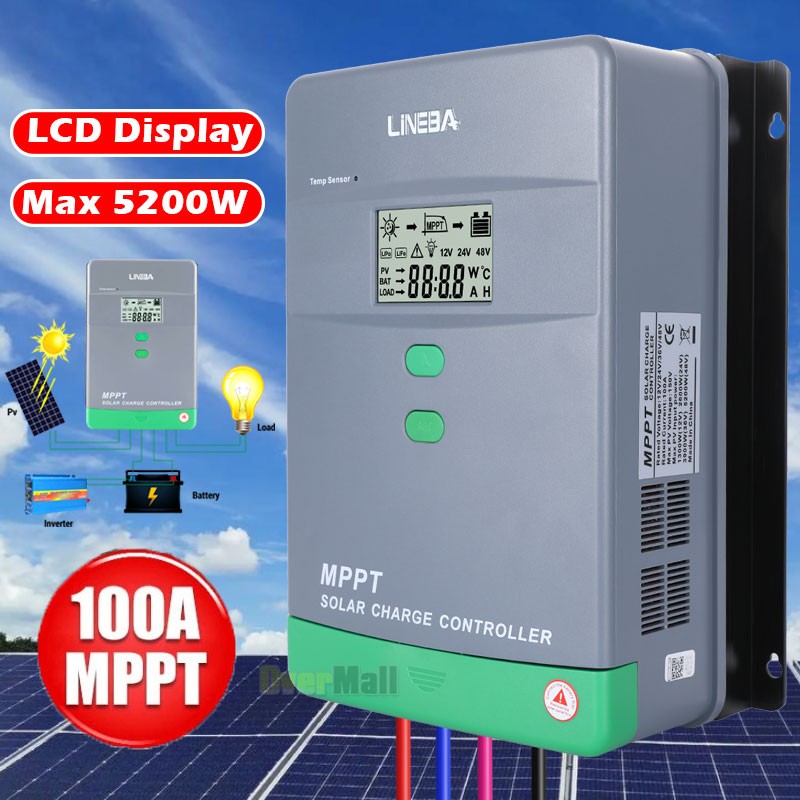

100A MPPT Solar Charge Controller 12V 24V 36V 48V Battery PV Max 5200W

100A MPPT Solar Charge Controller 12V 24V 36V 48V Battery PV Max 5200W Parallel BUY WITH CONFIDENCE ↓ ↓ ↓
√ 100% New & Excellent Quality
√ Strictly QC, Each set was fully tested before shipping
√ Free 1-5 Days Shipping From NJ,USA.Ship within 24 hours.
√ Offer delivery with Tracking Number
√ Free Return, Seller Pay!!   Feature:
1. Multiple Protection Functions：Protection for overcharge, reverse current, overheat and reverse wiring.

2. 99% MPPT Charging Efficiency:Using innovative MPPT technology, charging efficiency UP to 99%, Fully utilize the power potential of solar panels.

3.100A MPPT CHARGING CONTROLLER：4-stage battery charging algorithm for a rapid, efficient , safe charging(Bulk Charge, Boost Charge, Float Charge,and Equalization), 100amp Rate Charging current

4. Fit for USER(can be set Lithium, Lifepo4, Li(NiCoMn)O2)/Vented/Flooded/Sealed/Gel/NiCd battery.User programmable for absorption voltage/Floating voltage/Low voltage disconnect./Load Timer. Real-time energy recording.

5. Fit for solar Panel:1300W(12V);2600W(24V);3900W(36V);5200W(48V); MPPT best working voltage range: DC18V-DC80V(12V);DC30V-DC100V(24V);DC65V-DC150V(48V)

6. Blacklight LCD Dispaly PV voltage/output power/Battery voltage/charging current/working mode/Temperature, ☀ TROUBLESHOOTING function and LCD display and can help users not only check the whole system operating data and statuses but also quickly identify system faults and modify parameters.

7. Mute and Excellent Heat Dissipation: Integrated heat sink, instead of cooling fan, provides a 0 dB surrounding for relax and ensures maximum charging efficiency and safety.

8. Compact in Size：Which makes it easy to install virtually anywhere.

Specification：
* Display mode：LCD * System voltage: 12V/24V/36V/48V AUTO
* Rated Charge Current: 100A
* Max PV open circuit voltage : 150V
* PV max input power:1300W(12V) 2600W(24V) 3900W(36V) 5200W(48V)
* Colour：Grey
* Material：PC+Aluminum Alloy
* Waterproof rating: IP30
* Dimension：263*192*111/10.35”*7.59”*4.37”
* Installation size:215mm*180mm / 8.46”*7.09”
* Aperture for installation:ф5mm
* Battery Over Voltage Protection:Lead-acid battery 16V
* Light control voltage:5V/10V/15V/20V
* Static loss：<50MA
* Temperature Compensation:-4mV/℃ for 12V system
* Light control voltage: 5V
* Temperature Compensation Coefficient: -4mV/°C/2V(25°C)
* Charge loop voltage drop: ≤0.2v
* LCD Temperature: -20°C~+70°c
* Operating Temperature: -20°C~+55°C (To run at full rated current continuously)
* Working humidity: ≤90% No condensation
* Grounded type:Positive grounded
* Battery type: User defalt,GEL,SLD,FLD,LiFePO4,Li(NiCoMn)O2

Charging control mode: MPPT
【Float charge】: Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery:13.8V
【Absorption charge】: Maintenance-free lead-acid battery:14.4V,
GEL:NO, lead-acid Flooded battery:14.6V, Duration:2hours
【Equalization charge】: Maintenance-free lead-acid battery:14.6V,
GEL:NO; lead-acid Flooded battery:14.8V, Duration:2hours
【Load disconnection(LVD)】: Maintenance-free lead-acid battery，GEL，lead-acid Flooded battery:10.8V
【Load reconnection(LVR)】: Maintenance-free lead-acid battery，GEL，lead-acid Flooded battery:12.6V     Products Include:
1x Solar Controller
